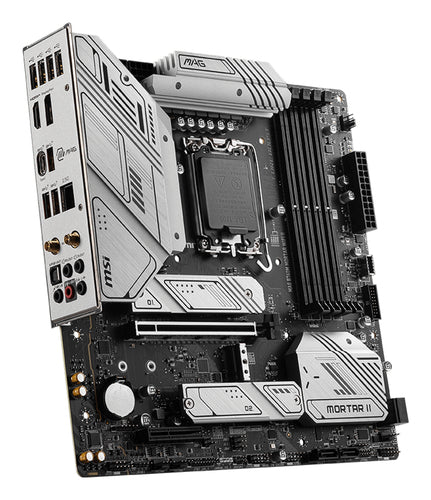

MSI MAG B760M MORTAR WIFI II DDR5

MSI MAG B760M MORTAR WIFI II DDR5 Intel B760 LGA 1700 micro ATX:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Long product name MSI MAG B760M MORTAR WIFI II DDR5 Intel B760 LGA 1700 micro ATX:

INTEL B760, LGA1700, 4x DDR5 7800MHz, 1x HDMI, 1x DisplayPort, 3x M.2, 4x SATA 6G, Wi-Fi 6E, 2.5Gbps LAN, mATX

MSI MAG B760M MORTAR WIFI II DDR5 Intel B760 LGA 1700 micro ATX:

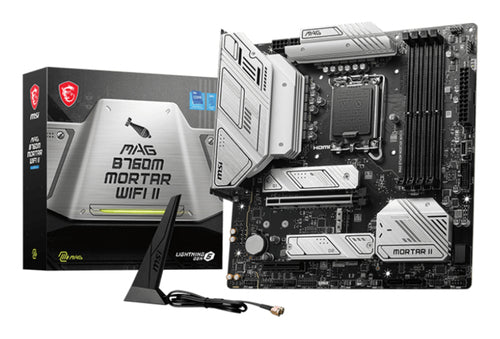

MAG B760m Mortar wifi
MAG B760M MORTAR WIFI II is designed for gamers, providing a stable, solid, and durable foundation for compact mATX PC builds. Coming up with Wi-Fi 6E, 2.5G LAN, DDR5, PCIe 5.0 solutions, and 3 M.2 connectors, it's ready for Intel® 14th Gen and 13th Gen Core processors.

unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Short summary description MSI MAG B760M MORTAR WIFI II DDR5 Intel B760 LGA 1700 micro ATX:

MSI MAG B760M MORTAR WIFI II DDR5, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 192 GB, DDR5-SDRAM

Long summary description MSI MAG B760M MORTAR WIFI II DDR5 Intel B760 LGA 1700 micro ATX:

MSI MAG B760M MORTAR WIFI II DDR5. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
